Industrial Double Shaft Shredder Machine for Solid Waste Reduction

type : Other

machinery test report : Provided

Place of Origin : Henan, China

Price : €31,755.52-33,930.55

Model Number : CR-1855

video outgoing-inspection : Provided

MOQ : 1

warranty : 1 Year

weight (kg) : 17000

material : Anti-collision films, pallets, etc.

Power(W) : 150KW

core components : Motor, Other, Bearing, Gear, PLC, Gearbox, Engine

Contact Now

Industrial Double Shaft Shredder Machine for Solid Waste Reduction

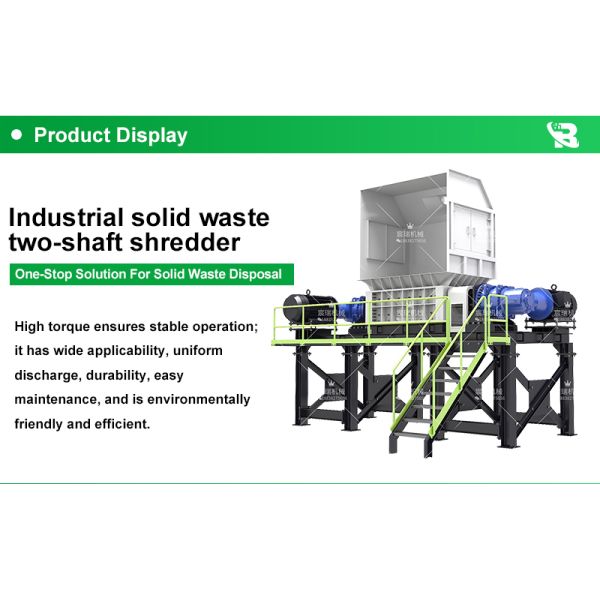

■Industrial solid waste two-shaft shredder

Equipped with a planetary reducer and a branded motor, it features highly reliable performance and low maintenance costs. It is suitable for processing various materials such as industrial solid waste, metals, scrap steel, scrap aluminum, tires, plastics, and wood. Through the working principle of dual-shaft shearing and extrusion, it achieves efficient and precise processing of materials. This shredder has the characteristics of low speed and high torque, which can significantly reduce dust, lower labor consumption, and ensure stable and reliable operation of the equipment. Depending on the material and the final required size, it can be equipped with different components or used in conjunction with shredders of other stages to crush materials to the desired size.

■Advantage

Using the CR series shredders enables more efficient shredding operations. These low-speed industrial shredders have strong shredding capabilities and higher versatility. ★ It can effectively shred large pieces of waste, doubling the output of crushing and sorting processes. ★ Equipped with a PLC control system, automatic overload protection, and an automatic reverse switch. ★ The low-speed design ensures extremely low noise during operation and minimal dust generation. ★ It has energy-saving features, and is very convenient in installation, operation, and maintenance.

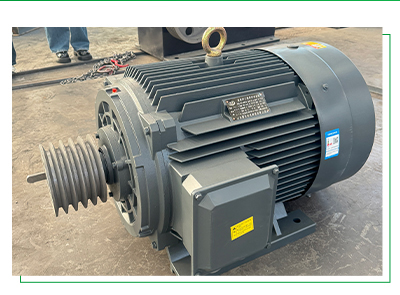

01 Motor

We use domestic motor manufactured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.

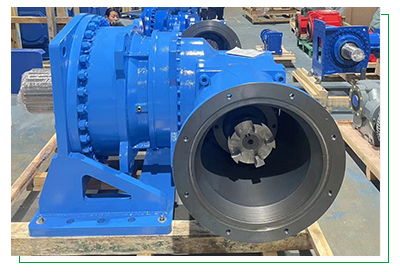

02 Planetary Gearbox

High torque, low noise, steady performance.

Greater power transmission efficiency, compact and efficient load distribution,
light-weight and high-power density, accurate results & stability and enhanced life-span.

03 Shredder box body

The split type chassis design makes the overall structure of the shredder more compact, lightweight, occupies less space, is easy to install and fix, and can achieve efficient crushing operations in limited space. | The split design makes the shredder more convenient to maintain.

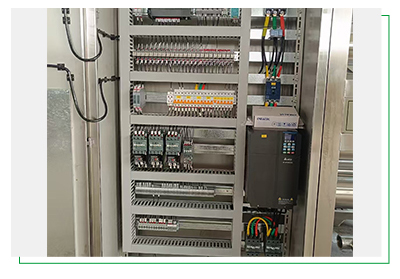

04 PLC control cabinet

Shredder control cabinets adopts PLC control, Shneider and Siemens electrical components for options, automatically reverse when overload.

05 Blades

Blades made of high hardness alloy: 55Crsi//M6v/H13 for options, according to different material processing, different blade shape, thickness and cutting head quantity providing the optimum solutions.

Model	Motor power	Reducer model	Blade disc diameter (mm)	Shaft diameter (mm)	Overall dimensions (mm)	Weight（KG）
600	11*2kw	ZQ400 * 2	220	120	2400 * 1200 * 1800	2000
600		18.5*2kw	ZQ500 * 2	260	140	2700 * 1400 * 1900	2600
800	18.5*2kw	ZQ500 * 2	260	140	3200 * 1700 * 2200	3300
800		30*2kw	ZQ650 * 2	400	180	3800 * 1800 * 2200	5200
8040	30*2kw	ZSY 280*2	400	180	4000 * 1900 * 2400	6500
1000	37*2kw	ZQ750 * 2	400	180	4000 * 2100 * 2400	7000
1000		45*2kw	ZQ850 * 2	450	220	4200 * 2100 * 2600	10000
1040	37*2kw	ZSY 315*2	400	180	4200 * 2100 * 2600	9000
1245	45*2kw	ZSY 355*2	450	220	4500 * 2200 * 2700	11000
1550	55*2 kw	ZSY 400*2	500	270	4800 * 2200 * 2800	13000
1855	75*2 kw	ZSY 450*2	550	280	5600 * 2200 * 3000	17000
2060	110*2 kw	ZSY 500*2	600	300	6000 * 2200 * 3200	20000

NOTE:

1.The above shredder is our standard configuration.
2. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge.
3. More information please contact us, we can custom the product on your request.

About Us

Zhengzhou Chenrui Machinery Equipment Co., Ltd. was established in 2007. Our factory is located in the High-End Equipment Manufacturing Park, Zhanjie Town, Gongyi City, Zhengzhou City, Henan Province. We design and manufacture industrial shredders, waste tire recycling equipment, waste metal recycling machinery, and waste home appliance crushing and sorting production lines, etc. Our products have obtained ISO and CE certifications and have been widely exported to over 30 countries, receiving high praise from customers. Over the years, we have continuously improved and researched, developing various new products that sell well both at home and abroad, earning a good reputation and corporate image. We are always committed to providing better quality and service. Welcome your inquiries!

Q: Why Choose Us?

（1）15 years of manufacturing experience

We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)

（2）Manufacturer, Not Dealer

Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.

（3）Fast Delivery

We promise the goods can be shipped out on delivery date after confirmation of the order.

Q: How do I know the quality of your machine?

A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.

Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?

A: Yes, you can.It depends on the difference of blades teeth and quantity, which can be customized.

Q:Which brand of motor will you use?

A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.

Q: Will you dispatch the engineer to guide installation?

A: Yes,according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation
